Quick Specs
DiameterΦ87.1mm
Length138.5mm(The tilt/shift mechanism is 96 mm long)
Weight1,340g
Filter threadΦ105mm(uses adapter ring)
Specifications
| Type | FUJINON GF30mmF5.6 T/S |
|---|---|

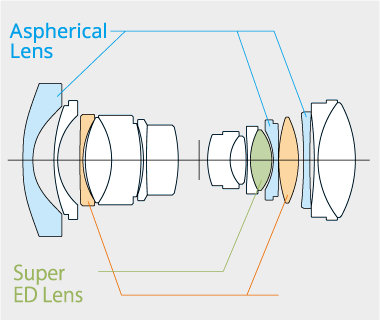

| Lens configuration | 16 elements in 11 groups(includes 3 aspherical, 1 super ED and 2 ED elements) |
| Focal length | f=30mm(24mm) |
| Angle of view | 84.7° |
| Max. aperture | F5.6 |
| Min. aperture | F32 |
| Aperture control | Number of blades · 9(rounded diaphragm opening) |
| Minimum focus distance (mesured from focal plane) | 0.3m |
| Max. magnification | 0.21x |
| Tilt range | ±8.5˚ |
| Shift range | ±15mm |
| Tilt scale | Ruled in 1˚ increments |
| Shift scale | Ruled in 1mm increments |
| Lens rotation | Locks at -90, 0, and 90 degreeswith a click every 30 degrees |
| T/S rotation | Locks at 0 and 90 degreeswith a click every 45 degrees |
| External dimensions : Diameter x Length (approx.) | Φ87.1mmx138.5mm(The tilt/shift mechanism is 96 mm long) |
| Weight (approx.) | 1,340g |
| Filter size | Φ105mm(uses adapter ring) |
| Accessories included | Flont lens cap FLCP-77Rear lens cap RLCP-002Lens hoodAdapter ringAdapter ring cap FLCP-105Tripod collar footLens pouch |
