Quick Specs
Motor typeLinear motor
Image stabilizationYes
SealingYes
DiameterΦ104.5mm
Length246.5mm
Filter threadΦ95mm
Specifications
| Model name | GF500mmF5.6 R LM OIS WR |
|---|---|

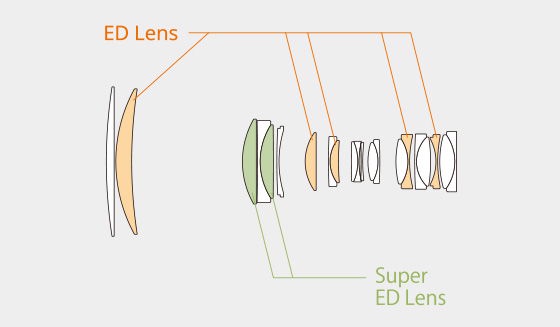

| Lens configuration | 21 elements in 14 groups (includes 2 super ED and 5 ED elements) |
| Focal length (35mm format equivalent) | f=500mm (396mm) |
| Angle of view | 6.3˚ |
| Max. aperture | F5.6 |
| Min. aperture | F32 |
| Minimum focus distance (mesured from focal plane) | 2.75m |
| Max. magnification | 0.2x |
| External dimensions : Diameter x Length (approx.) distance from camera lens mount flange | Φ104.5mmx246.5mm |
| Weight (approx.) excluding caps, hoods and Tripod collar foot | 1,375g |
| Filter size | Φ95mm |
| Accessories included | Front lens cap FLCP-95 Rear lens cap RLCP-002 Lens hood Tripod collar foot Lens pouch |
